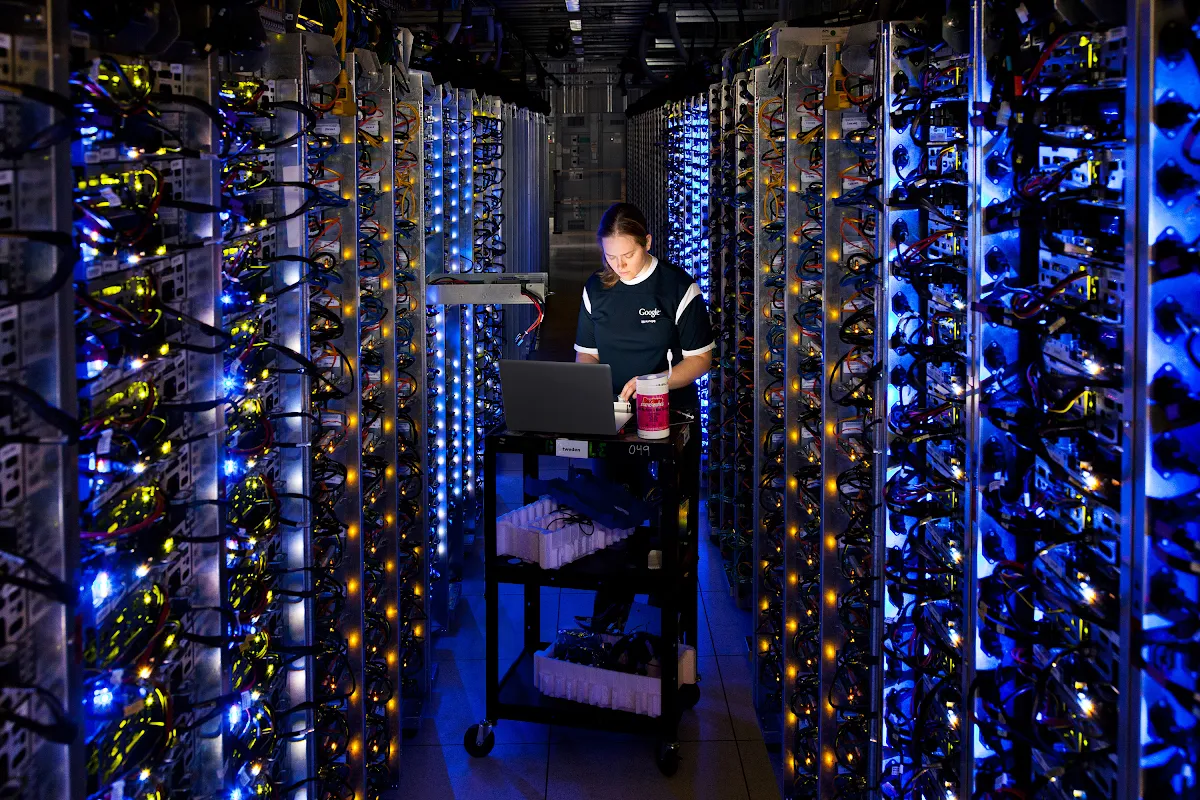

Caption: Denise diagnoses an overheated CPU at our data center in The Dalles, Oregon.
For more than a decade, we have built some of the world's most efficient servers.


Photo from the Google Data Center gallery

Our world is increasingly filled with data from all sorts of sources, including environmental data. Can we reduce the data to a reduced, meaningful space to save on computation time and increase explainability?

This notebook will be used in the lab session for week 4 of the course, covers Chapter 8 of the old edition of Géron’s book (Chapter 7, “Dimensionality Reduction”, in the current Hands-On Machine Learning with Scikit-Learn and PyTorch edition), and builds on the notebooks made available on Github.

Need a reminder of last week’s labs? Click here to go to notebook for week 3 of the course.

Notebook Setup

First, let’s import a few common modules, ensure MatplotLib plots figures inline and prepare a function to save the figures. We also check that Python 3.5 or later is installed (although Python 2.x may work, it is deprecated so we strongly recommend you use Python 3 instead), as well as Scikit-Learn ≥0.20.

# Common imports
import numpy as np
import os

# to make this notebook's output stable across runs
rnd_seed = 42
rnd_gen = np.random.default_rng(rnd_seed)

# To plot pretty figures
%matplotlib inline
import matplotlib as mpl
import matplotlib.pyplot as plt
mpl.rc('axes', labelsize=14)
mpl.rc('xtick', labelsize=12)
mpl.rc('ytick', labelsize=12)

# Where to save the figures -- shared _files/ dir for this part's generated output
IMAGES_PATH = "_files"
os.makedirs(IMAGES_PATH, exist_ok=True)

def save_fig(fig_id, tight_layout=True, fig_extension="png", resolution=300):
    path = os.path.join(IMAGES_PATH, fig_id + "." + fig_extension)
    print("Saving figure", fig_id)
    if tight_layout:
        plt.tight_layout()
    plt.savefig(path, format=fig_extension, dpi=resolution)

Dimensionality Reduction using PCA

This week we’ll be looking at how to reduce the dimensionality of a large dataset in order to improve our classifying algorithm’s performance! With that in mind, let’s being the exercise by loading the MNIST dataset.

Q1) Load the input features and truth variable into X and y, then split the data into a training and test dataset using scikit’s train_test_split method. Use test_size=0.15, and remember to set the random state to rnd_seed!

Hint 1: The 'data' and 'target' keys for mnist will return X and y.

Hint 2: Here’s the documentation for train/test split.

# Load the mnist dataset
from sklearn.datasets import fetch_openml
mnist = fetch_openml('mnist_784', version=1, as_frame=False)
# Read in the mnist digit images and corresponding numbers
# ---------------------------------------------------------------------------
# The procedure here is similar to the notebooks we did last week. Use Hint 1 to store the input and target data.
X = _____[____]
y = _____[____]
# Import train_test_split() to create your training and test sets
# ---------------------------------------------------------------------------
from ________._______ import __________

# Now separate your X and y into training and test sets (use train_test_split)
# ---------------------------------------------------------------------------
_____,_____,____,____ = __________(_,_,___=___,_____=____) # (data,target,test_size,random_state)

We now once again have a training and testing dataset with which to work with. Let’s try training a random forest tree classifier on it. You’ve had experience with them before, so let’s have you import the RandomForestClassifier from sklearn and instantiate it.

Q2) Import the RandomForestClassifier model from sklearn. Then, instantiate it with 100 estimators and set the random state to rnd_seed!

Hint 1: Here’s the documentation for RandomForestClassifier

Hint 2: Here’s the documentation for train/test split.

Hint 3: If you’re still confused about instantiation, there’s a blurb on wikipedia describing it in the context of computer science.

# Import RandomForestClassifier here.
# ---------------------------------------------------------------------------
from sklearn.______ import _______
# Here we initiate a RF classifier objects with custom settings: 100 estimators, random_state=rnd_seed
# ------------------------------------------------------------------------------------------------------
rnd_clf = _____(______=______, #Number of estimators
                ______=______) #Random State

We’re now going to measure how quickly the algorithm is fitted to the mnist dataset! To do this, we’ll have to import the time library. With it, we’ll be able to get a timestamp immediately before and after we fit the algorithm, and we’ll get the time by calculating the difference.

Q3) Import the time library and calculate how long it takes to fit the RandomForestClassifier model.

Hint 1: Here’s the documentation to the function used for getting timestamps

Hint 2: Here’s the documentation for the fitting method used in RandomForestClassifier.

import time
# Use a function in time (check documentation) to load **current** time before training the RF classifier
# ------------------------------------------------------------------------------------------------------
t0 = _____._____()

# Train the RF classifier
# ------------------------------------------------------------------------------------------------------
rnd_clf.___(_____, _____)

# Use the same function for t0 to load **current** time **after** training the RF classifier
# ------------------------------------------------------------------------------------------------------
t1 = _____._____()
# Run this as is, how many seconds did it take to train the classifier?
# ------------------------------------------------------------------------------------------------------
train_t_rf = t1-t0

print(f"Training took {train_t_rf:.2f}s")

We care about more than just how long we took to trian the model, however! Let’s get an accuracy score for our model.

Q4) Get an accuracy score for the predictions from the RandomForestClassifier

Hint 1: Here is the documentation for the accuracy_score metric in sklearn.

Hint 2: Here is the documentation for the predict method in RandomForestClassifier

# Import the accuracy score metric in scikit-learn (check Hint 1 for ideas on how to import metrics)
# ------------------------------------------------------------------------------------------------------
from _____._____ import _____
# Now try to use the trained classifier to generate predictions for the unseen test set (X_test)
# ------------------------------------------------------------------------------------------------------
y_pred = _____._____(_____)
# Use the accuracy_score() metric on y_test and y_pred to evaluate the accuracy of our model
# ------------------------------------------------------------------------------------------------------
rf_accuracy = accuracy_score(_____, _____)

# Run this as is. We got an accuracy of 96.7%. Did you get similar scores?
# ------------------------------------------------------------------------------------------------------
print(f"RF Model Accuracy: {rf_accuracy:.2%}")

Let’s try doing the same with with a logistic regression algorithm to see how it compares.

Q5) Repeat Q2-4 with a logistic regression algorithm using sklearn’s LogisticRegression class. Hyperparameters: solver='lbfgs' (multinomial is the default behavior for multiclass problems with this solver)

*Hint 1: Here is the documentation for the LogisticRegression class.

# Import LogisticRegression class here.
# ---------------------------------------------------------------------------
from _____._____ import _____
# Initiate a LogisticRegression object with custom hyperparameters
# ---------------------------------------------------------------------------
log_clf = _____(_____="lbfgs",  #Solver
                _____=42) #Random State
# Timestamp for **current** time before training the LogisticRegression classifier
# ------------------------------------------------------------------------------------------------------
t0 = time.time()

# Training the LogisticRegression classifier
# ------------------------------------------------------------------------------------------------------
log_clf.fit(_____, _____)

# Timestamp for **current** time after training the LogisticRegression classifier
# ------------------------------------------------------------------------------------------------------
t1 = time.time()

# Run this as is, how many seconds did it take to train the classifier?
# ------------------------------------------------------------------------------------------------------
train_t_log = t1-t0
print(f"Training took {train_t_log:.2f}s")
# Now try to use the trained classifier to generate predictions for the unseen test set (X_test)
# ------------------------------------------------------------------------------------------------------
y_pred = _____._____(_____)

# Run this as is. We got an accuracy of 92.1%. Did you get similar scores?
# ------------------------------------------------------------------------------------------------------
log_accuracy = accuracy_score(_____, _____)  # Feed in the truth and predictions

print(f"Log Model Accuracy: {log_accuracy:.2%}")

Up to now, everything that we’ve done are things we’ve done in previous labs - but now we’ll get to try out some algorithms useful for reducing dimensionality! Let’s use principal component analysis. Here, we’ll reduce the space using enough axes to explain over 95% of the variability in the data...

Q6) Import scikit’s implementation of PCA and fit it to the training dataset so that 95% of the variability is explained.

Hint 1: Here is the documentation for scikit’s PCA class.

Hint 2: Here is the documentation for scikit’s .fit_transform() method.

# Here we will experiment a bit with reducing the dimensionality of the mnist data.
# First, import the PCA class from scikit-learn
# ------------------------------------------------------------------------------------------------------
from _____._____ import _____ # Importing PCA
# We will now initiate the PCA algorithm, with a custom hyperparameter to only keep only a certain amount of PC components
# In the documentation, search for the keywords "numbers ... to keep"
# ---------------------------------------------------------------------------------------------------------------------------
pca = PCA(_____=_____) # Set number of components to explain 95% of variability
# Fit the PCA model and use it to transform our training data (reducing data dimentionality) [fit_transform]
# ---------------------------------------------------------------------------------------------------------------------------
X_train_reduced = pca._____(____) # Fit-transform the training data
# Transform our test data (reducing data dimentionality) with the pca algorithm (do not fit the model again!)
# ---------------------------------------------------------------------------------------------------------------------------
X_test_reduced = pca._____(____)

Q7) Repeat Q3 & Q4 using the reduced X_train dataset instead of X_train.

# Load current time step, train RF classifier with X_train_reduced, load time step after training
# ------------------------------------------------------------------------------------------------------
t0 = _____._____() # Load the timestamp before running
rnd_clf.___(_____, _____) # Fit the model with the reduced training data
t1 = _____._____()  # Load the timestamp after running

# How many seconds did it take to train the model?
# ------------------------------------------------------------------------------------------------------
train_t_rf = t1-t0
print(f"Training took {train_t_rf:.2f}s")
# Use trained classifier to generate predictions from the **reduced** test set (X_test_reduced)
# ------------------------------------------------------------------------------------------------------
y_pred = _____._____(_____)

# Use accuracy_score to compare truth and prediction. We got 94.7% accuracy.
# ------------------------------------------------------------------------------------------------------
red_rf_accuracy = accuracy_score(_____, _____)  # Feed in the truth and predictions
print(f"RF Model Accuracy on reduced dataset: {red_rf_accuracy:.2%}")

Q8) Repeat Q5 using the reduced X_train dataset instead of X_train.

# Load current time step, train LogisticRegression with X_train_reduced, load time step after training
# ------------------------------------------------------------------------------------------------------
t0 = time.time() # Timestamp before training
log_clf.fit(_____, _____) # Fit the model with the reduced training data
t1 = time.time() # Timestamp after training

# How many seconds did it take to train the model?
# ------------------------------------------------------------------------------------------------------
train_t_log = t1-t0
print(f"Training took {train_t_log:.2f}s")
# Use trained classifier to generate predictions from the **reduced** test set (X_test_reduced)
# ------------------------------------------------------------------------------------------------------
y_pred = _____._____(_____)   # Get a set of predictions from the test set


# Use accuracy_score to compare truth and prediction. We got 91.38% accuracy.
# ------------------------------------------------------------------------------------------------------
log_accuracy = accuracy_score(_____, _____)  # Feed in the truth and predictions
print(f"Log Model Accuracy on reduced training data: {log_accuracy:.2%}")

You can now compare how well the random forest classifier and logistic regression classifier performed on both the full dataset and the reduced dataset. What were you able to observe?

Write your comments on the performance of the algorithms in this box, if you’d like 😀 (Double click to activate editing mode)
